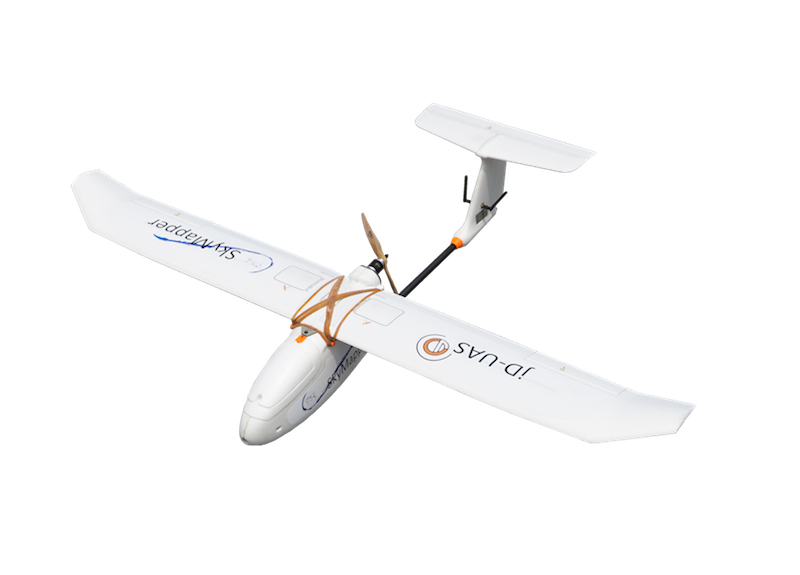

SkyMapper

The jDrones SkyMapper si a hand or catapult launched unmanned aircraft designed for aerial 2D/3D mapping and photography needs. SkyMapper is equipped with frontal pilot camera and High-Resolution mapping camera .

• Wingspan: 1.9m
• Weight: 3.2kg (with camera)
• Endurance: ~1 hour
• Operating range: 0 - 5km
• Camera: 20 Mega pixels, Landscape or Portrait oriented, 550tvl Pilot camera on nose
• Video system: 1.2Ghz or 5.8Ghz video transmitter
• Dual GPS system

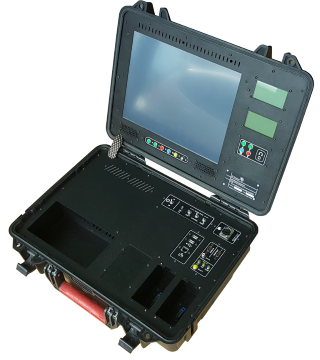

jD-GCS500-15S

jD-GCS500 is made for normal UAV operations. This GCS has designed for the UAV/UGV operations. It has internal video, power and audio distribution, hotswap battery system along with external power feed.

Technical:

• CPU: Intel i3, 8Gb RAM, 128Gb SSD HD, 1 x Ethernet, 2 x USB
• Display: 15" Sunlight-readable touch screen (1000 nits)
• Video system: Selectable from 3 inputs, CPU, Analog in PAL, HDMI input. 1 x HDMI output.
• Power system: 2 x 18V/6200mAh hotswap batteries, 1 x 24V auxiliary input, internal battery management and charging
• Audio: Digital audio system with loudspeaker / headset outputs
• Weight: ~10kg including batteries

jD-GCS1100-15D

jDrones GCS1100-15D is our biggest portable GCS system. If is designed for heavy use for all field conditions. It is also highly expandable due modular design. Modular electronics bay is located under strong aluminum table-top and can hold mission critical electronics. Both of it's screens are equipped with high power sunlight readable displays for easy operation even on hard sunlight conditions like Asia region. Case is full IP65 proof when closed

Technical:

• Integrated Intel i5, 8Gb RAM, 128Gb (256Gb optional) SSD, 1 x Ethernet, 2 x USB,
• Display(s): 15" Sunlight readable touch screens (1000 nits)
• Video system: 3 way selectable input on right screen: CPU, Analog input, HDMI input. Left screen is always CPU. HDMI output from right screen.
• 2 x HostSwap batteries (18v/6200mAh) with internal battery management and charging. External 24V-DC input
• 1 x Modular electronics bay
• Operating system: Windows 7/10, Linux
• Weight: ~26kg including batteries
